The
TLG-403-MM
Replacement rotor for all AIR series
generators
New Design Now Available
AIR 403, AIR X, AIR Marine,
Land AIR, and certainly for the
Breeze
The last set of blades you will ever buy. Absolute
quiet operation.

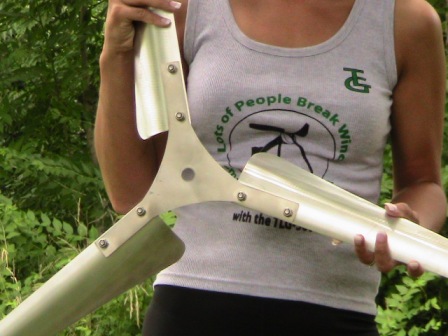

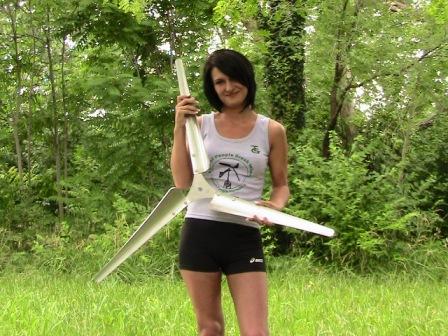

Lacy displays the
TLG-403-MM/SS with the optional steel hub.
The

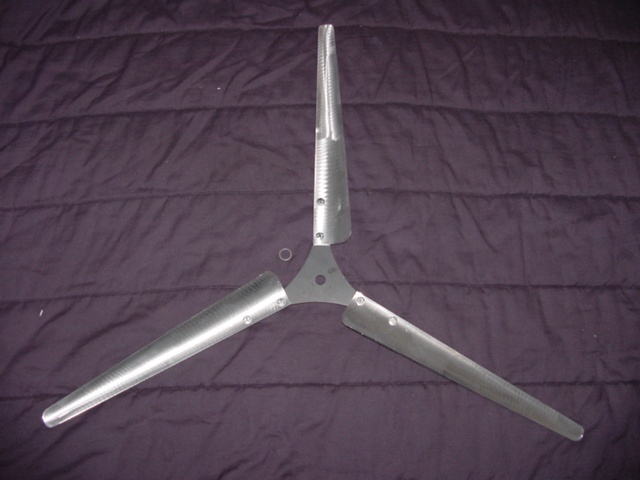

TLG-403-MM rotor is designed specifically to replace the stock
carbon fiber resin blades on all AIR series generators, such as the
AIR 403, AIR X, AIR Marine, Land AIR, and Breeze.
It being an MM series rotor by TLG Windpower Products means absolute
silent operation and unsurpassed durability. With this upgrade you
can rid yourself of the noise and vibrations caused from the stock
blades forever. The TLG-403-MM and SS rotors are built to outlast
your AIR series turbine, making it the last set of blades you will
ever buy for it.
You have two models to choose from in this series, the standard
TLG-403-MM which comes with a steel hub and hardware that you will
need to prime and paint.
Or you can choose the TLG-403-MM/SS which comes with a stainless
steel hub and hardware so you can assemble it, mount it, and forget
it.
The blades DO NOT; flex, buzz in high wind, break when their
cold, nor do they have any vibration. It’s the true meaning of the
word "upgrade"!
Specs:
Diameter 43"
Center hole 17mm (just like the stock hub that comes with the unit)
Weight about 2.5 pounds assembled.
Tested up to 125 mph
Kit includes:
(3)
1/8" thick Aluminum blades
(1) 3/16" thick steel hub or 10 gauge Stainless Steel depending on which
series you purchase.
All nuts, bolts, and washers for assembly.
(1) 17mm spacer to go behind the hub to provide proper hub to generator
bearing spacing.
NOTE:
Your nose cone will not snap back on, but you won't care once you see the
TLG-403-MM / SS in action. It is recommended to smear a thin layer of
silicone between the hub and blades to prevent electrolysis caused by
dissimilar metal contacting each other.
Before you buy
please read the disclaimer
View Assembly Instructions
TLG-403-MM $109.99
Steel Hub Version
TLG-403-MM/SS
$139.99 Stainless Steel Hub Version
Call to order (620)
422-3700
